Spesifikasi Teknis, Fungsi dan Harga Mesin Fabrikasi Logam

Spesifikasi, Fungsi dan Harga Mesin Fabrikasi Logam

 sebelum ngobrol tentang mesin, mari kita minum kopi dulusebelum ngobrol tentang Spesifikasi, Fungsi dan Harga Mesin Fabrikasi Logam, mari kita ngopi dulu 🙂

Perkenalkan saya Saldy Kurniawan, bekerja sebagai Sales Manager di PT Tecno Mesin Utama.

PT Tecno Mesin Utama  bergerak dibidang jasa servis dan pengadaan mesin-mesin fabrikasi logam terutama sheet metal processing.

Kami memegang keagenan untuk servis dan sales untuk beberapa brand ternama seperti

  • AKYAPAK (Plate Bending Roll Machine, Profile Bending Roll Machine, CNC Beam Drilling Machine, CNC Plasma Cutting Machine, CNC Flange Drilling Machine, CNC Plasma Oxy Drilling Machine, Self Align Rotator, Positioner, Coloum Boom, dll)
  • YSD (Press Brake, Guillotine Shearing, Iron Worker, Power Press, Notching, dll.)
  • BAYKAL (Press Brake, Swing Beam Shear, Laser Cutting, Turret Punching, Index Punch, Plasma Cutting, Water Jet dll.)

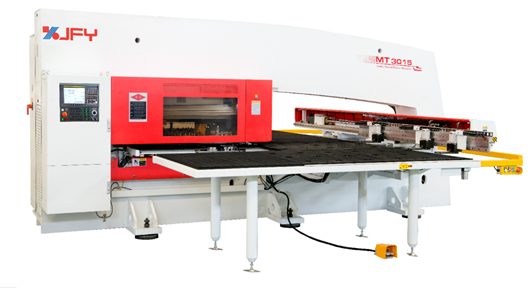

  • JFY (CNC Turret Punch)
  • JORNS AG (CNC Folding and Shearing Machine)
  • WOOJIN (Panel Punching Press, Bush Bar Bender, Bush Bar Cutter, Bush Bar Punch, dll)
  • GOLDEN LASER (YAG Laser, Fiber Laser and CO2 Laser Machine)
  • HUGONG (Fiber Laser and Plasma Cutting)
  • EUL JI (CNC V Cutting Machine)
  • COSEN (Band Saw, Billet Saw, Vertical Saw)
  • KING JIMEI (Uncoiler, Straightener, Slitting, Cut to Length, Roll Forming)
  • HANJIE (Pipe bending Machine, Tube Bending Machine)
  • SUNRISE (Iron Worker, Punching)

Jika anda tertarik atau berencana membeli mesin fabrikasi logam, anda dapat menanyakan Spesifikasi, Fungsi dan Harga Mesin Fabrikasi Logam yang sesuai terlebih dahulu dengan saya.

Saya akan menjelaskan Spesifikasi, Fungsi dan Harga Mesin Fabrikasi Logam

Hubungi

SALDY KURNIAWAN

nomor HP: 0813-45026234 atau 0858-22116234

atau email ke kurniawan.saldy@gmail.com.

Anda juga bisa mengunjungi www.sheetmetalmachine.blogspot.com dan www.mesinbending.blogspot.com.

Semoga bermanfaat.

Mesin Bandsaw COSEN tipe SH250R


“COSEN” Semi-Automatic Hinge-Type Horizontal Bandsaw Model: SH-250R

The SH-250R is a large capacity; compact size machine requires less floor space when compared to other machines with the same capacity (10″). Featuring power roller feeding, hydraulic powered saw head,  this economical automatic band saw is an excellent choice for a diverse job shop
MACHINE SPECIFICATIONS

MAXIMUM CUTTING
CAPACITY
Round
250 mm (10”)
Square
230 x 230 mm (9” x 9”)
Rectangle
230 H x 250 W mm (9” x 10”)
SAW BLADE
Speed
50Hz: 19, 31, 48, 78 mpm (62, 101, 157, 256 fpm)
60Hz: 23, 37, 58, 93 mpm (75, 121, 190, 305 fpm)
Size
3350 x 27 x 0.9mm  (132” x 1” x 0.035”)
Guide
Carbide Blade Guide
Cleaning
Powered Wire Brush
MOTOR OUTPUT
Saw blade
2 HP ( KW)
Vise Roller
1/4 HP (0.18 KW)
Hydraulic
1/4 HP (0.18 KW)
Coolant
1/8 HP (0.1 KW)
TANK CAPACITY
Hydraulic oil
15L
Coolant
40L
FEEDING
Power roller vise
NET WEIGHT
480 kg
GROSS WEIGHT
580 kg
Floor Space
1820 x 900 x 1040 mm



SH-250R Machine Features
Machine Structure:
Oversized hydraulic cylinder supports the rugged saw frame with heavy-duty universal ball joint accomplishing smooth & consistent down feed through the entire cutting cycle.  Special wear resistant DU bushing works inside the precision bore solid cast hinge and ground pivot shaft to ensure durability and long useful life.
Blade Drive:
The gearbox is specially designed to accept high lateral pressure. the Cosen design accepts more pressure during operation and will not create thermal distortion, providing long gearbox life under production conditions.
Step variable blade speed
Blade Guidance & Lubrication System:
Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. This feature reduces wear on blade guides and blade, thus enhancing blade life.
The rigid guide arms are mounted on an extra wide dovetail slide for more solid and supportive surface. It also allows easy adjustment of guide arms.
One roller supports the blade from the top, giving it extra penetrating force. The carbide guides are relieved to allow coolant flow to lubricate and cool the blade as well as work piece.
Integral coolant system.
Adjustable  powered wire brush effectively removes chips from blade gullet.
Control & Automation:
The feed rate may be adjusted by setting the dial between 0 and 10. It allows adjustment feed rate according to the varying material types, which results in longer blade life, shorter cutting times, and better finishes.
A work height selector is located over the hydraulic cylinder and is used to adjust the blade to minimum clearance height over the work.
The control panel is clearly arranged and conveniently located on front of the machine, eliminating the need for the operator to reach over a moving blade.
Out-of-stock switch
“Save-a-Blade.” At the end of a cut, when the blade is at its lowest position, the stock automatically backs off from the blade slightly to allow the blade to clear the work on its return to the starting position. This special “Save-a-Blade” feature prevents tooth deformities by eliminating this undesirable abrasion.
Preset piece counter with automatic power off
Safety:
Interlock design in electrical and hydraulic system prevents the saw from accidental start
Conduits protect all exposed electric wiring and hydraulic circuits.  All access doors and blade guards are painted alert orange for increased safety awareness.
Standard Accessories:
Adjustable material stop
Additional flushing hose for cleaning
Bi-metal saw blade
Tool Box with tools, leveling pads, and an additional wire brush
Operation & parts manual
 Jika anda tertarik membeli atau berencana investasi atau sekedar diskusi tentang mesin, terutama dalam hal pengerjaan plat logam (sheet metal fabrication), seperti mesin bending (press brake), potong plat (swing beam shearing), gunting plat (guillotine shearing), potong sudut (notching), roll plat (roll bending machine), pon (punching or turret punching), press (stamping), deep drawing (hydraulic press), plasma cutting (potong plasma), laser, water jet, marking, engraving, dll. termasuk Mesin Bandsaw COSEN anda bisa menghubungi saya di nomor HP 081345026234 / 085822116234 atau email kurniawan.saldy@gmail.com atau Saldy@pt-tmu.co.id, saya dengan senang hati berbagi pengetahuan tentang hal tersebut, terima kasih.



Mesin Laser Potong Cutting Plat merk Golden Laser type YAG

Mesin Laser Merk Golden Laser type YAG
Mesin Laser Merk Golden Laser type YAG

 “Golden Laser” Large – Scale Metal Laser Cutting Machine type GJMSJG-150300DT 800W
Main Technical Parameters
Laser type
YAG lamp pump solid state laser generator
Laser Wave length
1064 nm
Laser power
800 W
Effective Cutting area
1500mm x 3000 mm
Working Table
Saw tooth working table (pneumatic clamp and pneumatic loading device are for optional)
Moving system
Digital offline control system, YASKAWA servo motor, ABBA high precision ball screw and REXROTH linear guide transmitting system
Laser Head
Suspension type anti collision head imported from Australia
Lubrication System
Automatic Lubrication System
Cutting Speed with cooling compressed filter air
0 – 50 mm/s, speed change due different metal, different thickness
Choose cooling compressed filtered gas as cutting gas, then need
Air compressor + air refrigerated dryer + gas holder (for optional)
Choose other cutting gases
Industrial O2 and Industrial N2
Min cutting kerf
0.15 mm (1 mm thickness)
Min bore diameter
0.2 mm (1 mm thickness)
Position accuracy
± 0.05 mm
Max groove depth
8-10mm carbon steel, 6-8mm stainless steel, 3-4mm alumunium, 2-3mm brass and cooper
Cooling system
Full scale interior circulation air condition, enduring high and low temperature type water chiller system
Format supported
PLT, DXF, AI, DST etc
Software
Golden laser professional laser cutting and automatic nesting software
Power supply
380V±5% 50HZ
Main power/Whole power
22 kW
Mesin laser Potong Cutting Plat merk Golden Laser type YAG  ini bisa dilengkapi untuk pemotongan pipa (laser pipe cutting) dengan tambahan biaya tentunya.
golden laser line production.rz
Jika anda tertarik membeli atau berencana investasi atau sekedar diskusi tentang mesin, terutama dalam hal pengerjaan plat logam (sheet metal fabrication), seperti mesin bending (press brake), potong plat (guillotine shearing), potong sudut (notching), roll plat (roll bending machine), pon (punching), press (stamping), plasma cutting (potong plasma) dll. anda bisa menghubungi saya di nomor HP 081345026234 / 085822116234 atau email kurniawan.saldy@gmail.com, saya dengan senang hati berbagi pengetahuan tentang hal tersebut, terima kasih.

sheetmetalmachine.blogspot.com atau mesinfabrikasi.blogspot.com



Mesin Multi fungsi Punching, Shearing dan Notching plat, Potong siku, sudut, profil, round bar, square bar dll


  “YSD” Q35Y – 20 IRON WORKER

Ini adalah Mesin Multi fungsi Punching, Shearing dan Notching plat, Potong siku, sudut, profil, round bar, square bar dll.


Technical specifications:
* Flat bar shearing Width x Thickness mm              :       330 x 20 ; 480 x 10
                Square bar mm                                             :       50 x 50
                Round bar mm                                              :       Φ 50
                Joist (type) ∆                                                 :       16#
 * Section Channel (type) ∆                                         :       16#
   Shearing T(type) mm                                                :       100 x 12
   Angle bar
                Cutting at 90° mm                                        :       160 x 160 x 14
                Cutting at 45° mm                                        :       80 x 80 x 10
 * Punching Diameter x Thickness mm                     :       Φ 25 x 20, Φ 150 x 3.5
 * Notching
                Notching die L x W x T mm                         :       100 x 52 x 13
 * Flanging die (one stroke) L x T ∆ mm                    :       500 x 3
                                                                                                250 x 15
 * Tube notching ∆ mm                                                :       Φ 108
* Shutter die ∆ mm                                                      :       96 x 9 x 2 x 3
* Punching force KN                                                   :       800
* Max. stroke of the cylinder mm                             :       80
* Depth of throat mm                                                 :       330
* Motor power KW                                                     :       5.5
* Overall dimensions L x W x T mm                          :       1820 x 790 x 1790
* Approx. weigth kg                                                    :       1800
Note : for optional
Jika anda tertarik membeli atau berencana investasi atau sekedar diskusi tentang mesin, terutama dalam hal pengerjaan plat logam (sheet metal fabrication), seperti mesin bending (press brake), potong plat (swing beam shearing), gunting plat (guillotine shearing), potong sudut (notching), roll plat (roll bending machine), pon (punching or turret punching), press (stamping), deep drawing (hydraulic press), plasma cutting (potong plasma), laser, water jet, marking, engraving, dll. anda bisa menghubungi saya

Saldy Kurniawan

HP : +6281345026234 / +6285822116234

Email : kurniawan.saldy@gmail.com atau Saldy@pt-tmu.co.id

saya dengan senang hati berbagi pengetahuan tentang hal tersebut, terima kasih.

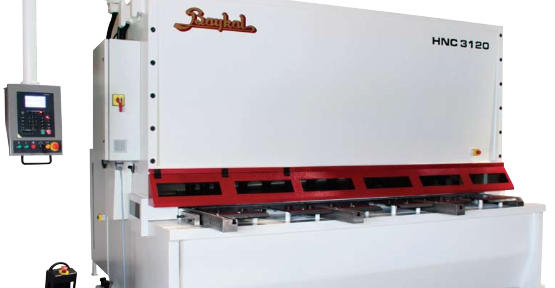

Mesin Press Brake and Shear merk BAYKAL

Mesin Press Brake and Shear merk BAYKAL

Kami adalah distributor tunggal dan layanan purna jual Mesin Baykal di Indonesia Silakan baca penjelasan berikut tentang Baykal Press Brake



Profil Perusahaan

            Didirikan pada awal 1950-an, Baykal saat ini menempatkan diri sebagai produsen terkemuka dan pemasok global sheet metal machine yang mengkhususkan diri dalam produksi press brake, shear, folder, notchers, punching machine, laser cutting system, plasma cutting machine dan water jet cutting machine.

Sejak 30 tahun terakhir Baykal telah berkembang menjadi eksportir utama dibidang sheet metal processing dikirim ke pasar dunia dengan pelanggan yang berlokasi di seluruh dunia dari Amerika sampai ke Australia.

Baykal saat ini terwakili di lebih dari 120 negara di seluruh dunia melalui dealer yang ditunjuk. Di pasar domestik Turki, mesin fabrikasi logam Baykal secara tradisi menjadi pemimpin pasar utama  berkat peran pendiri perusahaan dalam pengembangan industri mesin Turki yang mana berkonsentrasi dalam menjaga pada kualitas dan pelayanan.
Lebih dari itu semua, dengan latar belakang pengalaman yang panjang di bidang teknik, Baykal berkeinginan untuk tampil sebagai perusahaan pembuat mesin yang profesional melayani industri dan sadar akan pentingnya kualitas, .

BAYKAL membuat mesin press brake  dari rentang kapasitas mulai dari 40 ton sampai yang sangat besar dari 6000 ton. Panjang dapat berkisar dari 1250 mm sampai 18100 mm unit tunggal. Shears dari 1,5 sampai 8 meter untuk ketebalan sampai 40 mm.

Mesin diatas digunakan untuk membangun kembali WTC yang sempat runtuh karena serangan teroris.

Mesin terbesar yang BAYKAL buat dan digunakan oleh CATERPILLAR (Perusahaan terkemuka manufaktur alat berat)

BAYKAL juga mengakuisi saham WEINBRENNER, produsen mesin Press Brake dan Shear terkemuka di Jerman.

Jika anda tertarik membeli atau berencana investasi atau sekedar diskusi tentang mesin, terutama dalam hal pengerjaan plat logam (sheet metal fabrication), seperti mesin bending (press brake), potong plat (guillotine shearing), potong sudut (notching), roll plat (roll bending machine), pon (punching), press (stamping), plasma cutting (potong plasma) dll. anda bisa menghubungi saya di nomor HP 081345026234 / 085822116234 atau email kurniawan.saldy@gmail.com, saya dengan senang hati berbagi pengetahuan tentang hal tersebut, terima kasih.

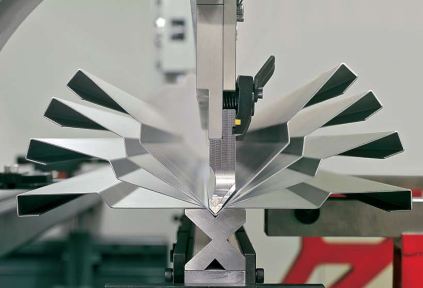

Mesin Tekuk Plat Hidrolik CNC Merk YSD

“ YSD” CNC Hydraulic Press Brake type: HPS 320/40
1.      Technical specifications:
Specifications/Models
HPS320/40
Pressing force
3200
KN
Bending length
4000
mm
Dist. Between uprights
3150
mm
Stroke or ram
280
mm
Dist. Between table / ram
520
mm
Depth of throat
400
mm
Table Width
250
Mm
Approaching speed
100
mm/s
Working speed
10
mm/s
Return speed
100
mm/s
Motor power
30
kW
Volume oil of tank
700
L
Travel in X Axis
600
Mm
Length of machine
4450
Mm
Width of machine
2200
Mm
Height of machine
3800
Mm
Weight of Machine
19500
Kg
2.   Accuracy of the machine
Y1-Y2 axis:
Linear encoder for electronic ram depth—setting, equilibration, calibration
Y1, Y2-axis are the independent motion parameters of two cylinders controlled by CNC control system. Both ends of machine with a high-precision (resolution 0.005mm) linear guide from Germany, which used to determine the exact distance of the ram and the table, linear guide is connected with the table, eliminating the deformation of the slider position column impact. Ram running speed and location data through the two optical grating timely feedback to the CNC system, CNC system to calculate and output the servo valve control signal S1 ~ S2, control of two electro-hydraulic servo valve output flow, so that the two cylinder simultaneous .
Repetition accuracy       +/- 0.01 mm
Accuracy of positioning    +/- 0.02 mm
V axis: automatic bed crowning by CNC Controller.
Deflection of the bed and ram under bending load is an unavoidable fact of life with any brake, which tends to cause bed angles to be inconsistent from center to ends of part. The problem is further compounded by the fact that bending loads are constantly changing for job to job and even within the same part, due to variations in material strength, thickness, and bend angle, bend length and other factors. YSD’s adjustable bed crowning system will automatically calculate and adjust the amount of crown on the bed to the proper position from bend to bend if so needed.
The crowning table composes of many crowning wedges, they could move relatively, and one group of ideal curve could be achieved on the crowning table. Thus linearity of bending product could be guaranteed.
CNC crowning ensures the ram and table are parallel during the bending operation. Sheet thickness, length, die opening and tensile strength data are entered into the control. Force and related deflection of the table and ram are automatically determined, preloading is optimally obtained for each bend. With YSD HPS press brakes, you obtain an optimal bending process and excellent bending results form the first piece.
           reading accuracy: 0.01 mm
          positioning accuracy:+/- 0.01 mm
3.   Machine structure
3.1  For the best rigidity and performance of the main machine body, the frame and Component is designed and Finite Element Analyzed under ANSYS/UG software.
3.2  Full steel connected structure, stress released through vibration by adopting Germany technology, with rigidity and accuracy well kept. Warranty for the main frame of the machine is full working life.
3.3  The welding frame for big YSD machine have crack detection through ultrasonic.
The structure parts on machine with rust removed through sand beating. Also spray With rust-proof paint.
3.4  For the one-time machining of uprights, up ram and working table, SKODA and 5-Axis TOSHIBA CNC boring & milling machine is adopted. Thus the parallelism and Uprightness between all mounting surfaces could be guaranteed.
4.   Hydraulic system
4.1  Modularized hydraulic system is adopted, and the pipeline and connections are reduced to the minimum level to ensure minimum maintenance.
4.2  Hydraulic Valve block including proportional servo valve and pressure valve is adopted from Germany.
4.3  High-pressure internal gear pump from Voith, Germany or NACHI, Japan with reliability and low noise.
4.4  Quality oil seals from MERKEL, Germany are adopted. With secure sealing and long life.
4.5  YSD quality cylinders ensure high reliability and safety.
Hydraulic cylinder and Piston is with hot forging, and with one-time machining on CNC lathe. CNC cylindrical grinding for roundness and super fine machining on horning machine for smoothness is adopted on the cylinder. CNC cylindrical grinding for roundness and vibration super-fine machining on the outer surface for smoothness is adopted on the piston rod. Hard chroming is adopted on the surface of the piston.
4.6  Relief valve is adopted to protect the oil pump and hydraulic system when over-loading.
4.8     With oil leveler to indicate the level of oil tank.
4.8  With precise guiding system, position measuring system and the function of hydraulic equilibrium, bending over whole length with good accuracy could be achieved.
4.9  The machine can run continuously under rated load, without oil leakage in hydraulic system. With reliability and accuracy.
5.   Electrical system
5.1  Electrical design according to international standard and meet customer’s requirement.
                    With reliability, anti-jamming and long life.
5.2  Main electrical components adopt product from TELEMECHANIQUE France.
5.3  Cooling fan is adopted. With heat releasing function for electrical cabinet.
5.4  Remote foot pedal, with emergency stop function.
6.   Tooling
Standard-version – YSD classic:
Clamping board and bolts for tooling.
One set of standard punch R15
One set of standard multi V die block M13A
(with V opening 12 mm, 16 mm, 32 mm, 48 mm, 60 mm and 100 mm)
All YSD tooling is full grinded and with hardening. Tooling material 42CrMo. Hardness
HRC42.
7.   Standard equipments
DA56 CNC Controller : from DELEM, Holland to control 4 axis ( Y1+ Y2 + X + Z axis)
Y1-Y2 axis                     : Linear encoder for electronic ram depth—setting, equilibration, calibration
X axis                             : Linear encoder for electronic backgauge
V axis                             : Automatic CNC Adjustment crowning table (Optional)
Cooling fans for electrical cabinet.
Foot operation station with emergency stop.
Emergency stop on electrical cabinet.
Fixed ladder.
Operation and maintenance manual.
Power supply                : 380V/50Hz /3 phases
Display safety voltage  : 24V, DC
8.   Key components:
Description of parts               :  Brand Origin
CNC contro                           :  DELEM, Holland
Servo valves                          :  REXROTH/BOSCH, Germany
Pressure valves                      :  REXROTH/BOSCH, Germany
Pump                                     :  VOITH/NACHI, Germany/Japan
Oil seals                                :  MERKEL, Germany
Linear encoder                      :  HEIDENHAIN, Germany
Main electrical components  :  TELEMECANIQUE, France
Guiding belt                          :  MERKEL (or B+S), Germany (or USA)
Ball screw                             :  HIWIN, Taiwan province, China
9.   DA52 CNC Control from DELEM (Will be change with DA56)
The DA-52 is an integrated CNC controller which offers all basic CNC control functions up to 4 axes for electro-hydraulic CNC press brake. The TFT-LCD display and the modern front panel layout guarantee a very user-friendly and easy to program controller.
Panel based housing makes it available to mount it directly onto electric cabinet or inside a pendent cabinet. Special shortcut keys are designed for direct, rapid and easy programming.
Angle programming of Y axis and force control are offered as standard configuration.
DA-52 offers a stable and reliable solution by taking advantage of the most up-to-date technology. USB interface is equipped to facilitate quick backup of product and tool data.
Main Technical Specifications:
Parameter programming in one page
6.4″ LCD, true-color, TFT display
Crowning control is for option.
Tool library: 30 top punch and 30 bottom die.
USB interface
Advanced Y axis control algorithm for controlling closed-loop valve
Servo, frequency inverter or AC motor control
Panel based housing
266MHz processor
Memory capacity 64MB
DNC RS-232C, bi-directional and USB interface (Memory storage via USB)
Diagnostic program.
Program number 7 digits.
Drawing number 20 digits alpha numeric.
Product counter max. 9999
Step repeat 99 max.
Millimeter/Inches
Error messaging system
Computation on tooling safety zone, press force, bend allowance, bottoming force, angle correction database.

Jika anda tertarik membeli atau berencana investasi atau sekedar diskusi tentang mesin, terutama dalam hal pengerjaan plat logam (sheet metal fabrication), seperti mesin bending (press brake), potong plat (guillotine shearing), potong sudut (notching), roll plat (roll bending machine), pon (punching), press (stamping), plasma cutting (potong plasma) dll. termasuk Mesin Tekuk Plat Hidrolik CNC Merk YSD 320 Ton/4 Meter anda bisa menghubungi saya di nomor HP 081345026234 / 085822116234 atau email kurniawan.saldy@gmail.com, saya dengan senang hati berbagi pengetahuan tentang hal tersebut, terima kasih.

Mesin Pons Panel / Panel Punching Press Machine

Mesin Press Pons Panel atau Panel Press Punching Machine





Jika anda tertarik membeli atau berencana investasi atau sekedar diskusi tentang mesin Press Pons Panel atau Panel Press Punching Machine, terutama dalam hal pengerjaan plat logam (sheet metal fabrication), seperti mesin bending (press brake), potong plat (guillotine shearing), potong sudut (notching), roll plat (roll bending machine), roll profile, roll pipa (pipe roll bending machine), pon (punching), press (stamping), plasma cutting (potong plasma), laser cutting (potong laser),  CNC Beam Drilling Machine, dll. anda bisa menghubungi saya di nomor HP 081345026234 / 085822116234 dan email pribadi saya di kurniawan.saldy@gmail.com atau email perusahaan saya saldy@pt-tmu.co.id saya dengan senang hati berbagi pengetahuan tentang hal tersebut, terima kasih.

Mesin Shearing / Potong / Gunting Plat Hidrolik Merk YSD

 Mesin Shearing / Potong / Gunting Plat Hidrolik Merk YSD

Features :
Mesin ini dibuat berdasarkan teknologi dari LVD, Belgia
Frame dan Cutting Beam
disambung dengan bingkai las dengan sistem pelepas tegangan dan getaran untuk memastikan stabilitas dan akurasi
Sistem hidrolik terintegrasi canggih dengan kehandalan yang sangat baik
Dilengkapi dengan oveload protector.
Komponen listrik dipilih sesuai dengan DIN atau standar ISO
Pisau balok di guide dengan tiga pasang rol sehingga tepi potongan yang akurat, lurus, vertikal dapat diperoleh. Jadi gesekan antara pisau atas dan bawah berkurang
Lampu dengan bayangan garis untuk acuan posisi potong yang tepat
Hold-downs
hidrolik untuk menjepit lembaran baja selama geser
Standard Accessories :
1. Balok penyangga di meja, untuk memudahkan pengangkutan dan mengurangi kerusakan pada permukaan lembaran baja
2. Satu set pisau persegi panjang yang berkualitas untuk memotong baja ringan, masing-masing dilengkapi dengan 4 sisi pemotong yang bisa dibalik untuk memperpanjang keawetan.
3. Back gauge dilengkapi motor dengan tampilan digital.
4. Satu lengan balok dengan skala di sisi kiri meja
5. Pagar keamanan untuk mencegah jari terpotong
6. pemeliharaan alat
7. Satu buku petnjuk penggunaan dan pemeliharaan dalam bahasa Inggris

Key Component :
Solenoid valves : Rexroth, Germany or Vickers, USA
Seals : NOK, Japan
Electric components : Telemecanique, France
Pump : CAMEL , Taiwan
Roller Wheel : NEDELLA, SwitzerlandSpecification
Max. shearing capacity
Mild steel (45kg / mm²)         :         8  (mm)
Stain lees steel (60kg/mm²)   :         6  (mm)
Cutting length                        :    3100 (mm)
Max. cutting force                  :     275  (kN)
Back gauge range                   :     750  (mm)
Rake angle adjustment           :   0.5 ~ 2.5 (º)
Stroke per minute                   :   15 – 45
Frame throat                           :     100  (mm)
Number of hold downs           :      13
Volume of oil tank                  :      350 (I)
Motor power (380V/50HZ)    :        11 (kW)
Approx weight                        :    7900 (kg)
Dimensions

  • Length                            : 3755 (mm)
  • Width                             :  1848 (mm)
  • Height                            :  2180 (mm)

Jika anda tertarik membeli atau berencana investasi atau sekedar diskusi tentang mesin Shearing / Potong / Gunting Plat Hidrolik Merk YSD , terutama dalam hal pengerjaan plat logam (sheet metal fabrication), seperti mesin bending (press brake), potong plat (guillotine shearing), potong sudut (notching), roll plat (roll bending machine), pon (punching), press (stamping), plasma cutting (potong plasma) dll. anda bisa menghubungi saya di nomor HP 081345026234 / 085822116234 atau

email kurniawan.saldy@gmail.com, saya dengan senang hati berbagi pengetahuan tentang hal tersebut, terima kasih.



gambar pabrik mesin shearing dan bending YSD di Huangshi
gambar pabrik mesin shearing dan bending YSD di Huangshi
